import tqdm
import math
import torch
import qpytorch
from matplotlib import pyplot as plt

# Make plots inline
%matplotlib inline

SVQEP Model Updating

In this notebook, we will be describing a “fantasy model” strategy for stochastic variational QEPs (SVQEPs) analogous to fantasy modelling for exact QEPs.

To understand what a “fantasy model” is, we first think about exact QEPs. Imagine, we have trained a QEP on some data \(\mathcal{D} := \{x_i, y_i\}_{i=1}^N\), which is the same as saying that \(\mathbf{y} \sim \mathcal{QEP}(\mu(\mathbf{x}), K(\mathbf{x}, \mathbf{x}'))\).

If we observe some new data \(\mathcal{D}^*:= \{x_j, y_j\}_{j=1}^{N^*}\), then that data is easily incorporated into our QEP model as \((\mathbf{y}, \mathbf{y}^*) \sim \mathcal{QEP}(\mu([\mathbf{x}, \mathbf{x}^*]), K([\mathbf{x}, \mathbf{x}^*], [\mathbf{x}, \mathbf{x}^*]')\). To compute predictions with this new model (conditional on the same hyper-parameters), we could use the following piece of code for an exact QEP:

updated_model = deepcopy(model)
updated_model.set_train_data(torch.cat((train_x, new_x)), torch.cat((train_y, new_y)), strict=False)

or we could take advantage of linear algebraic identies to efficiently produce the same model, which is the get_fantasy_model function for exact QEPs in QPyTorch:

updated_model = model.get_fantasy_model(new_x, new_y)

The second approach is significantly more computationally efficient, costing \(\mathcal{O}((N^*)^2 N)\) time versus \(\mathcal{O}((N + N^*)^3)\) time.

In this tutorial notebook, we describe the online variational conditioning (OVC) approach of Maddox et al, ‘21 which provides a closed form method for updating SVQEPs in the same manner as exact QEPs are updated with respect ot new data, via the usage of the get_fantasy_model method.

Training Data

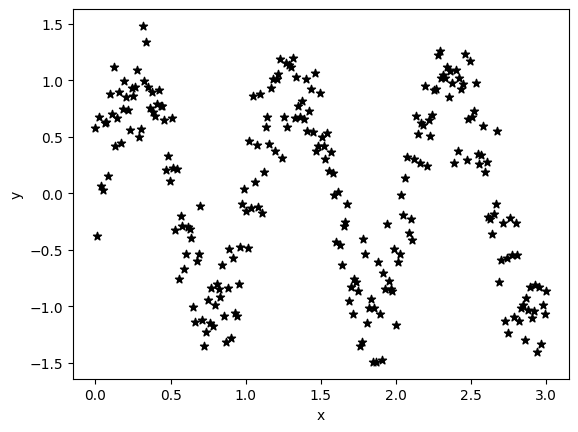

First, we construct some training data, here \(250\) data points from a noisy sine wave.

train_x = torch.linspace(0, 3, 250).view(-1, 1).contiguous()
train_y = torch.sin(6. * train_x) + 0.3 * torch.randn_like(train_x)

plt.scatter(train_x, train_y, marker = "*", color = "black")
plt.xlabel("x")
plt.ylabel("y")

Text(0, 0.5, 'y')

Model definition

Next, we define our model class definition. The only difference from a standard approximate QEP is that we require the likelihood object to be a) Gaussian (for now) and b) to be stored inside of the ApproximateQEP object.

from qpytorch.models import ApproximateQEP
from qpytorch.variational import CholeskyVariationalDistribution
from qpytorch.variational import VariationalStrategy
POWER = 1.0

class QEPModel(ApproximateQEP):
    def __init__(self, inducing_points, likelihood):
        self.power = torch.tensor(POWER)
        variational_distribution = CholeskyVariationalDistribution(inducing_points.size(0), power=self.power)
        variational_strategy = VariationalStrategy(self, inducing_points, variational_distribution, learn_inducing_locations=True)
        super(QEPModel, self).__init__(variational_strategy)
        self.mean_module = qpytorch.means.ConstantMean()
        self.covar_module = qpytorch.kernels.ScaleKernel(qpytorch.kernels.RBFKernel())
        self.likelihood = likelihood

    def forward(self, x):
        mean_x = self.mean_module(x)
        covar_x = self.covar_module(x)
        return qpytorch.distributions.MultivariateQExponential(mean_x, covar_x, power=self.power)

We initialize the SVQEP with \(25\) inducing points.

likelihood = qpytorch.likelihoods.QExponentialLikelihood(power=torch.tensor(POWER))
model = QEPModel(torch.randn(25, 1) + 2., likelihood)

Model Training

As we don’t have a lot of data, we train the model with full-batch (although this isn’t a restriction) and for \(500\) iterations (b/c our choice of inducing points may not have been very good).

model.train()
likelihood.train()

optimizer = torch.optim.Adam([
    {'params': model.parameters()},
    # {'params': likelihood.parameters()},
], lr=0.1)

# Our loss object. We're using the VariationalELBO
mll = qpytorch.mlls.VariationalELBO(likelihood, model, num_data=train_y.size(0))

iters = 500 + 1

for i in range(iters):
    optimizer.zero_grad()
    output = model(train_x)
    loss = -mll(output, train_y.squeeze())
    loss.backward()
    optimizer.step()
    if i % 50 == 0:
        print("Iteration: ", i, "\t Loss:", loss.item())

Iteration:  0    Loss: 0.7646129131317139
Iteration:  50   Loss: 0.7336000800132751
Iteration:  100          Loss: 0.718480110168457
Iteration:  150          Loss: 0.7089231014251709
Iteration:  200          Loss: 0.7016969323158264
Iteration:  250          Loss: 0.6985439658164978
Iteration:  300          Loss: 0.6927851438522339
Iteration:  350          Loss: 0.69287109375
Iteration:  400          Loss: 0.7060893774032593
Iteration:  450          Loss: 0.6896464824676514
Iteration:  500          Loss: 0.6860941648483276

Model Evaluation

Now, that we’ve trained our SVQEP, we choose some data to evaluate it on – here \(250\) data points from \([0, 8]\) to illustrate the performance both for interpolation (on \([0,3]\)) and extrapolation (on \([3, 8]\)).

model.eval()
likelihood.eval()

test_x = torch.linspace(0, 8, 250).view(-1,1)
with torch.no_grad():
    posterior = likelihood(model(test_x))

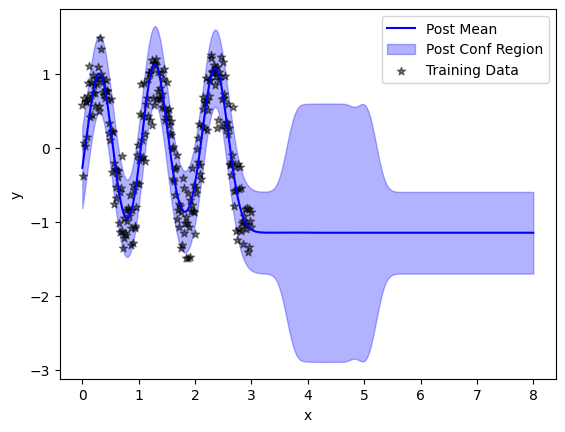

As expected, the posterior model fits the training data well but reverts to a zero mean and high prediction outside of the region of the training data.

plt.plot(test_x, posterior.mean, color = "blue", label = "Post Mean")
plt.fill_between(test_x.squeeze(), *posterior.confidence_region(), color = "blue", alpha = 0.3, label = "Post Conf Region")
plt.scatter(train_x, train_y, color = "black", marker = "*", alpha = 0.5, label = "Training Data")
plt.legend()
plt.xlabel("x")
plt.ylabel("y")

Text(0, 0.5, 'y')

Model Updating

Now, we choose \(25\) points to condition the model on – imagining that these data points have just been acquired, perhaps from an active learning or Bayesian optimization loop.

val_x = torch.linspace(3, 5, 25).view(-1,1)
val_y = torch.sin(6. * val_x) + 0.3 * torch.randn_like(val_x)

cond_model = model.variational_strategy.get_fantasy_model(inputs=val_x, targets=val_y.squeeze())

Note that the updated model returned is an ExactQEP class rather than a SVQEP.

cond_model

_BaseExactQEP(
  (likelihood): QExponentialLikelihood(
    (noise_covar): HomoskedasticNoise(
      (raw_noise_constraint): GreaterThan(1.000E-04)
    )
  )
  (mean_module): ConstantMean()
  (covar_module): ScaleKernel(
    (base_kernel): RBFKernel(
      (raw_lengthscale_constraint): Positive()
    )
    (raw_outputscale_constraint): Positive()
  )
)

We compute its posterior distribution on the same testing dataset as before.

with torch.no_grad():
    updated_posterior = cond_model.likelihood(cond_model(test_x))

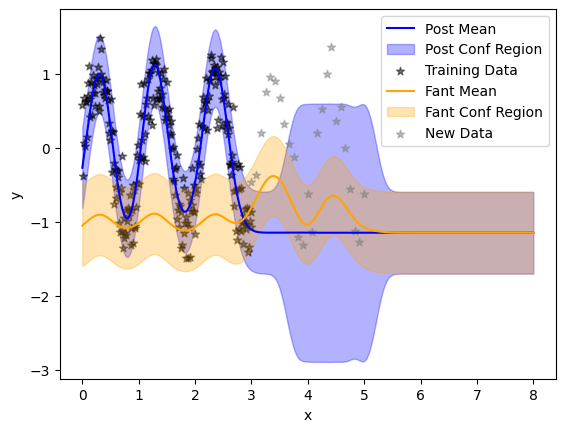

Finally, we plot the updated model, showing that the model has been updated to the newly observed data (grey) without forgetting the previous training data (black).

plt.plot(test_x, posterior.mean, color = "blue", label = "Post Mean")
plt.fill_between(test_x.squeeze(), *posterior.confidence_region(), color = "blue", alpha = 0.3, label = "Post Conf Region")
plt.scatter(train_x, train_y, color = "black", marker = "*", alpha = 0.5, label = "Training Data")

plt.plot(test_x, updated_posterior.mean, color = "orange", label = "Fant Mean")
plt.fill_between(test_x.squeeze(), *updated_posterior.confidence_region(), color = "orange", alpha = 0.3, label = "Fant Conf Region")

plt.scatter(val_x, val_y, color = "grey", marker = "*", alpha = 0.5, label = "New Data")
plt.legend()
plt.xlabel("x")
plt.ylabel("y")

Text(0, 0.5, 'y')
